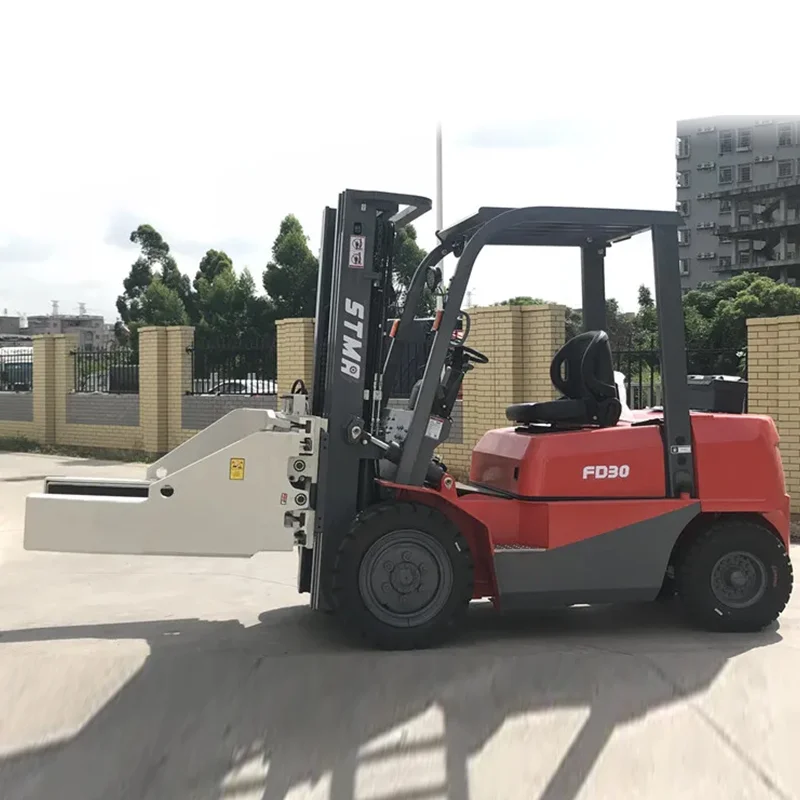

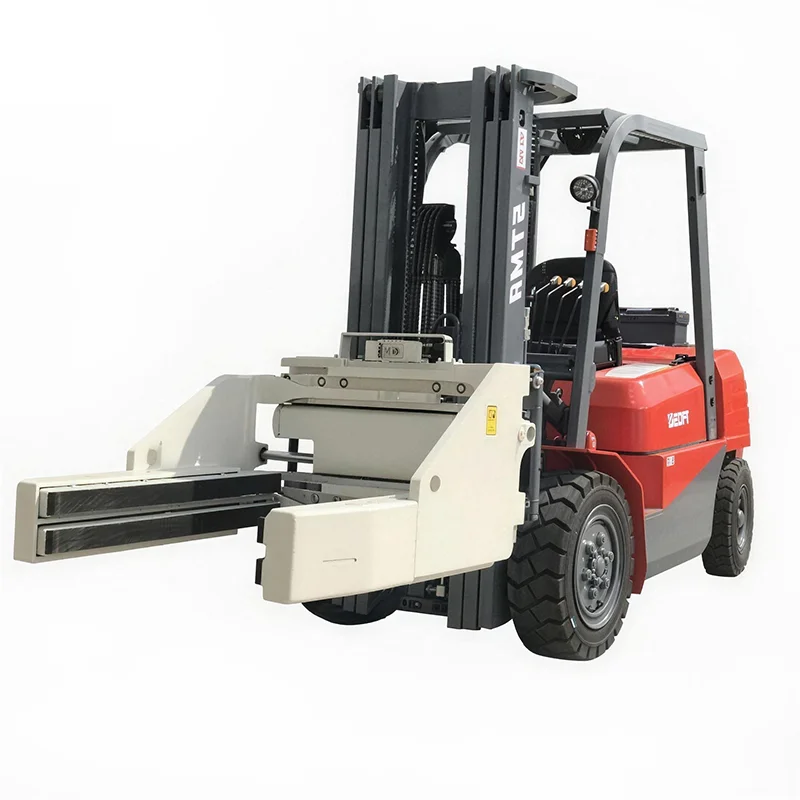

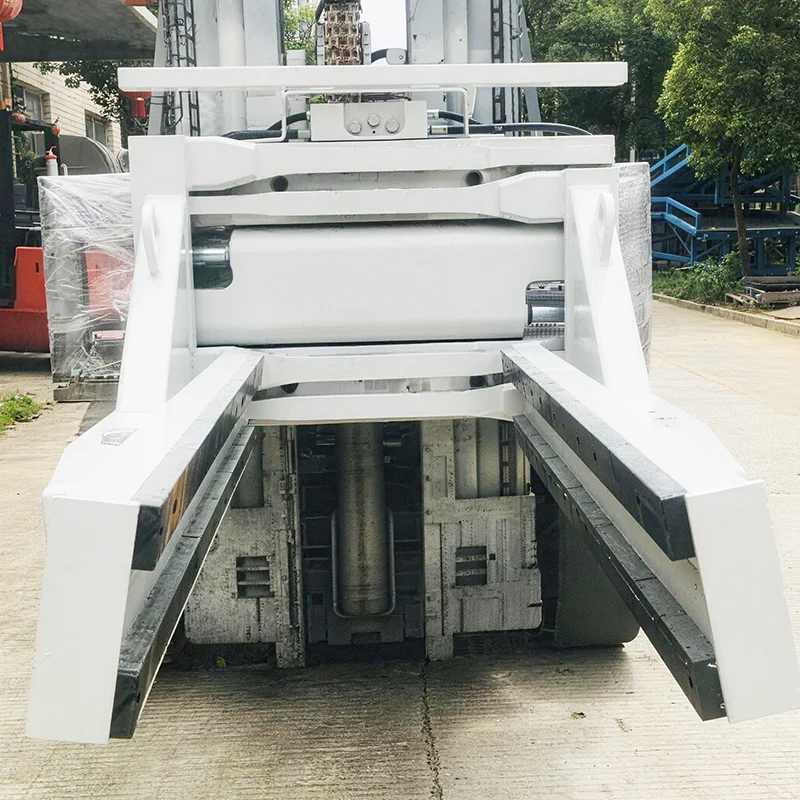

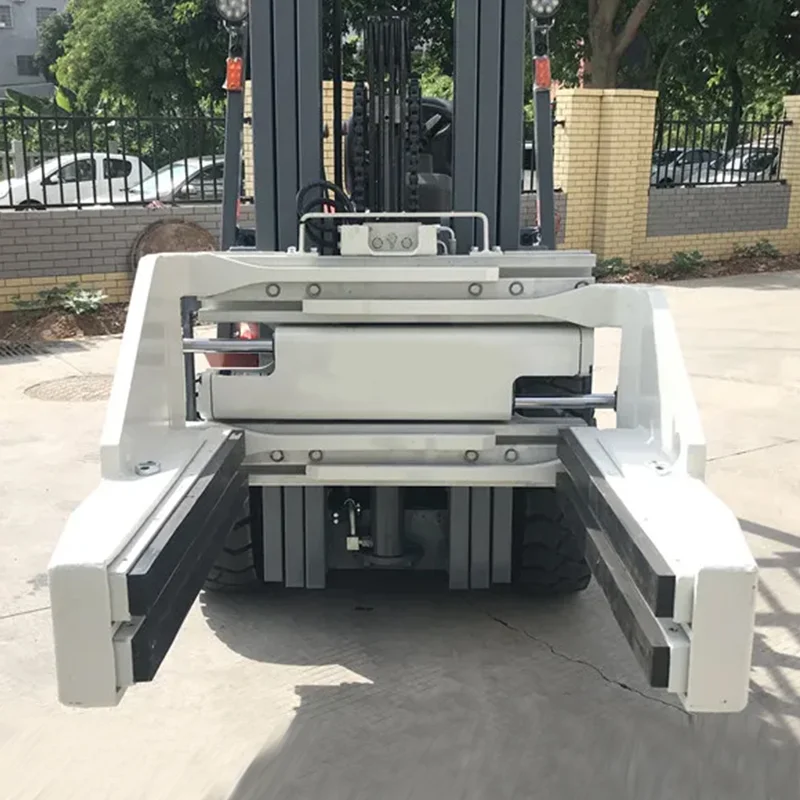

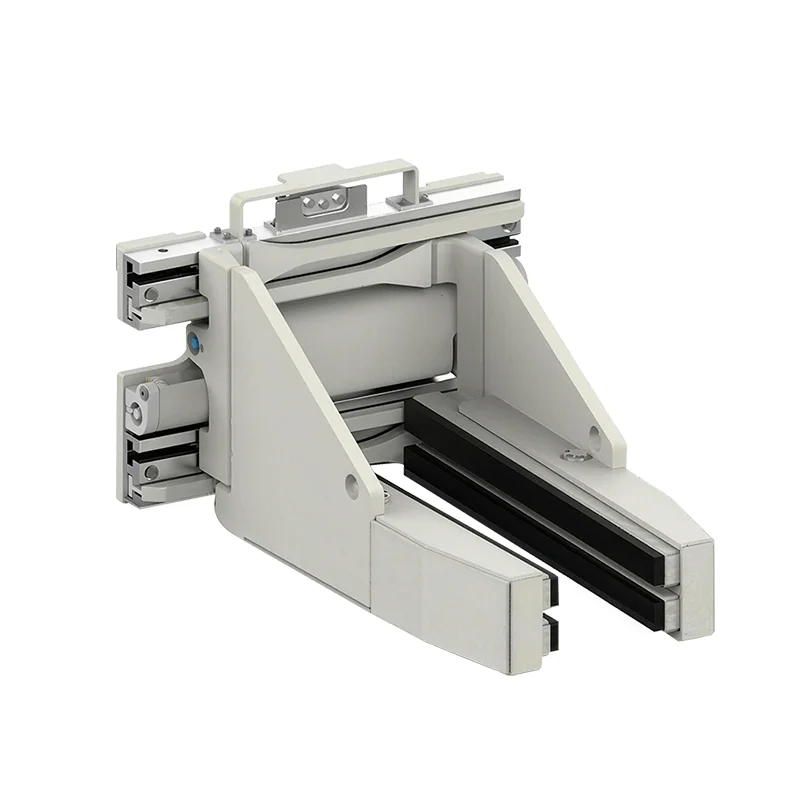

Block Clamp

Heavy-duty hydraulic block clamp – 2700kg capacity, 290-1610mm opening, Class II-III mounting, ideal for brick and block handling. Get a quote now!

● Message

+8615053722788 Call

cnznzb@163.com Email

Parameter	CKS30D-001A	CKS30D-001B	CKS30D-002B	CKS30D-002A	CKS30D-003A	CKS30D-003B	CKS30D-004B
Capacity @ Load Center	2700@500	2700@500	2700@500	2700@500	2700@500	2700@500	2700@500
Mounting Class	II	III	III	II	II	III	III
Opening Range (mm)	290–1610	290–1610	290–1610	290–1610	290–1610	290–1610	290–1610
Arm Height H (mm)	128	128	242	242	128	128	242
Arm Length L (mm)	1100	1100	1100	1100	1000	1000	1400
Frame Width B (mm)	1016	1016	1016	1016	1016	1016	1016
Arm Thickness T (mm)	202	202	202	202	202	202	202
Overall Height A (mm)	710	710	710	710	710	710	710
Vertical Center of Gravity - CGV (mm)	220	220	220	220	220	220	220
Weight (kg)	500	500	550	550	490	490	650
Effective Thickness - ET (mm)	145	152	152	145	145	152	152
Horizontal Center of Gravity - CGH (mm)	220	220	220	220	211	220	250

Custom solutions are supported. A wide range of additional models is available. Please get in touch with us.

Application Scopes

Brick handling, construction sites, warehouse operations, block manufacturing, loading unloading, industrial logistics, material handling.

Core Strengths

✅ Hydraulic block clamp for forklifts

✅ 2700kg capacity at 500mm load center

✅ 290-1610mm opening range

✅ Class II to III mounting compatibility

✅ 1000-1400mm arm length options

✅ 490-650kg attachment weight

✅ Heavy-duty steel construction

✅ Hydraulic cylinder for secure clamping

✅ Ideal for brick and block handling

Customized model matching & tailored technical proposals

Custom‑fit installation tips & optional on‑site commissioning

Warranty‑covered repair & customized spare‑parts supply

Targeted remote assistance & on‑site solutions on demand

Standard warranty coverage is offered for all products, extended warranty options are also available upon request.

Yes, we can provide remote commissioning and operation‑training support for your team.

Delivery lead time depends on order quantity and product types. Expedited shipping service is available with additional charges.

Yes, custom solutions are available. Please get in touch with our sales team for detailed requirements.

Absolutely. We support OEM / ODM customization services. Feel free to consult our sales team for more details.
