Technical Parameters
| Parameter | Mini020245 | M020260 | M020272 | M020284 |
|---|---|---|---|---|
| Over length (mm) | 1220 | 1450 | 1450 | 1450 |
| Over width (mm) | 865 | 1817 | 2117 | 2466 |
| Over height (mm) | 405 | 926 | 926 | 926 |
| Height product (without support spring) (mm) | 405 | 680 | 680 | 680 |
| Over weight (kg) | 180 | 456 | 480 | 540 |
| Bucket capacity (m³) | 0.1 | 0.39 | 0.46 | 0.56 |
| Working width (mm) | 990 | 1530 | 1830 | 2130 |
| Brush Dia. (mm) | φ400 | φ660 | φ660 | φ660 |
| Allow maximum pressure (MPa) | 20 | 21 | 21 | 21 |
| Flow (L/min) | 30-40 | 60-80 | 60-80 | 80-90 |
| Optional | — | Atomizing dust removal system | Side brush cleaning system | — |
Product Introduction
Application Scopes
Road cleaning, street sweeping, industrial site cleanup, construction site maintenance, warehouse cleaning, parking lot maintenance, municipal sanitation.
Core Strengths

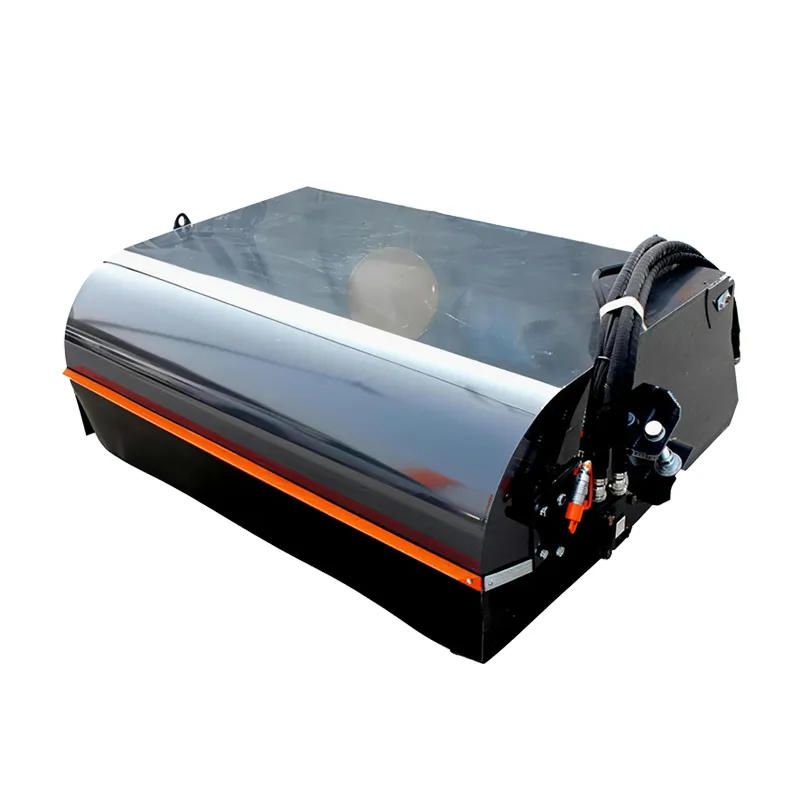

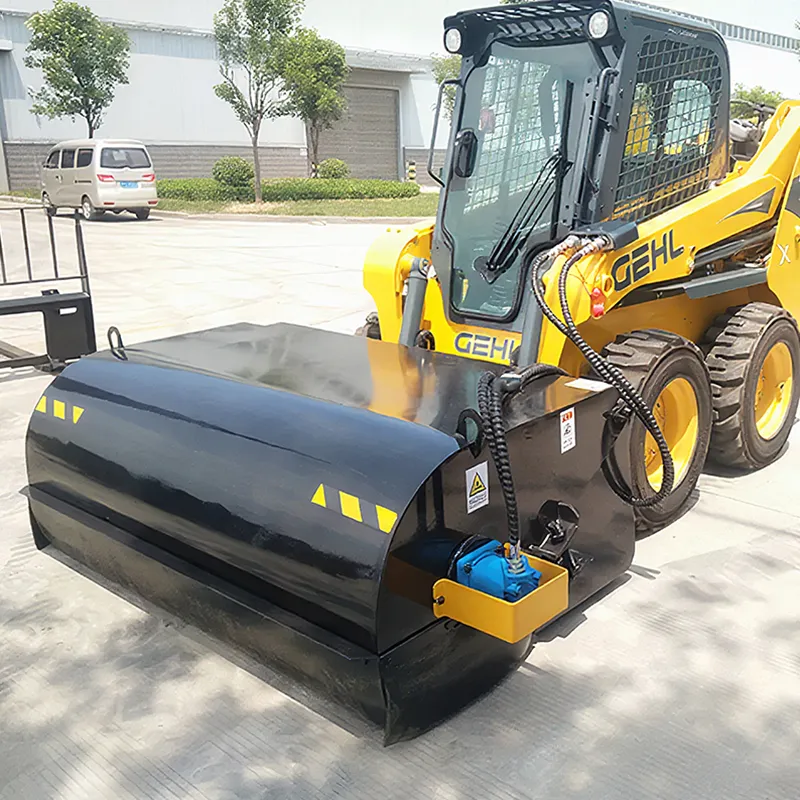

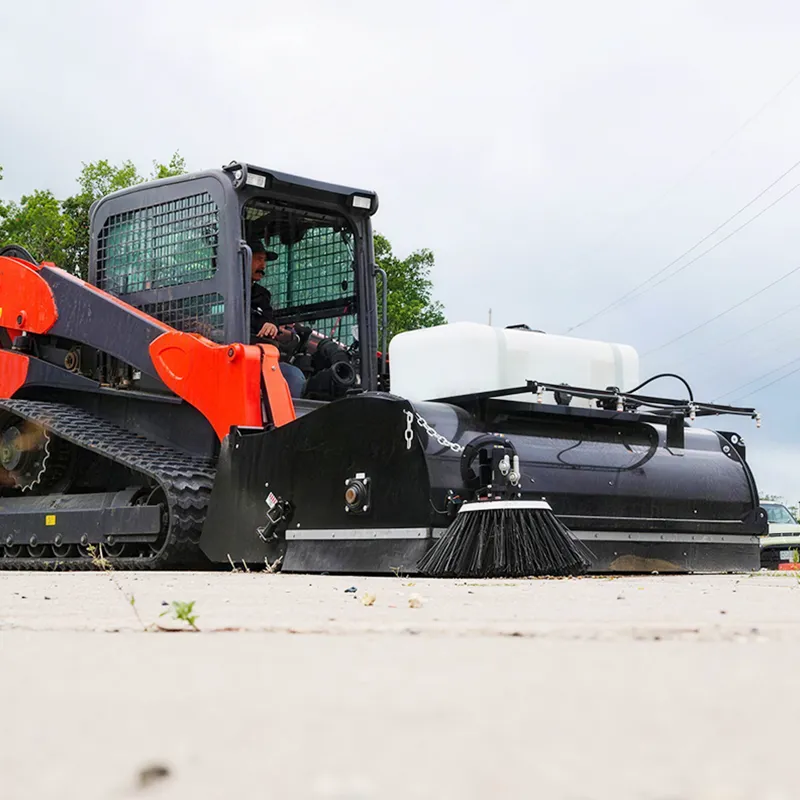

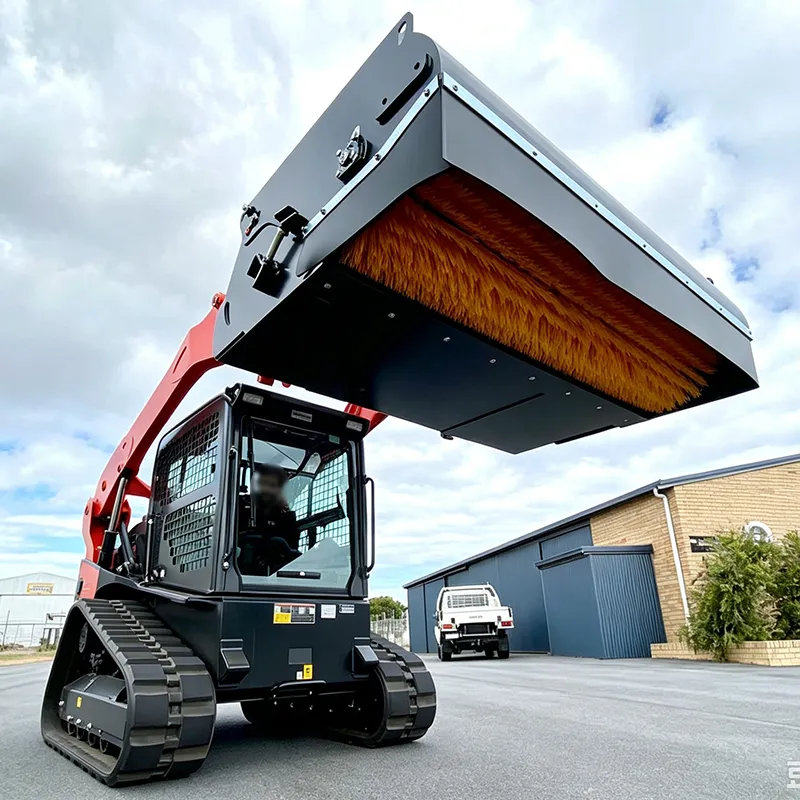

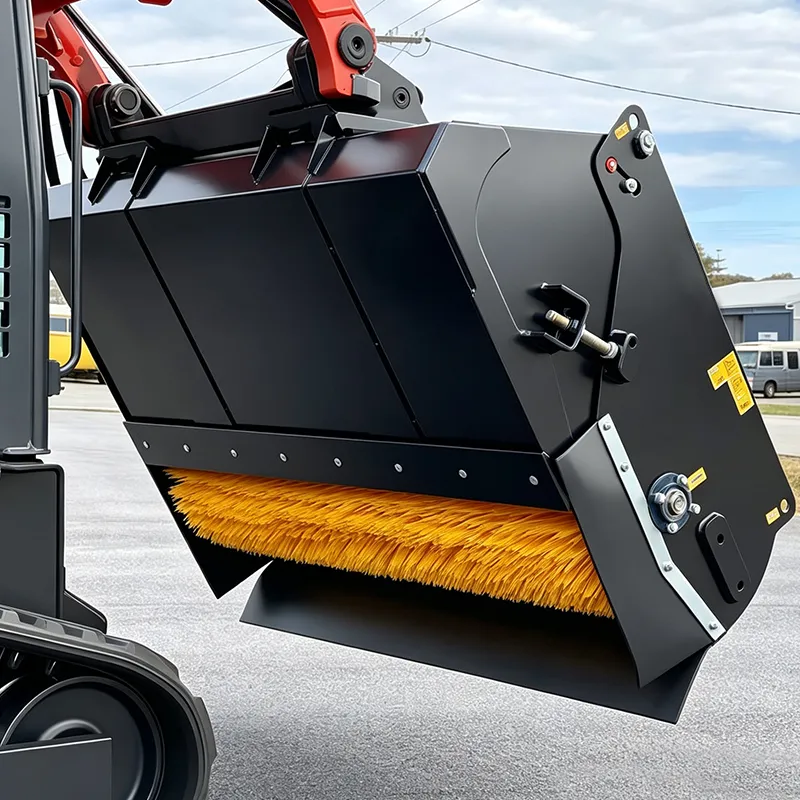

✅ Hydraulic closed bucket sweeper for skid steers
✅ Four models: Mini020245 to M020284
✅ Working width 990-2130mm
✅ 0.1-0.56m³ bucket capacity
✅ 400-660mm brush diameter
✅ Enclosed design, dust-free operation
✅ Optional atomizing dust removal system
✅ Efficient cleaning and collection
✅ Ideal for municipal and industrial cleaning
Our Services
Pre‑sales Consultation
Customized model matching & tailored technical proposals
Installation Guidance
Custom‑fit installation tips & optional on‑site commissioning
Warranty Service
Warranty‑covered repair & customized spare‑parts supply
24/7 Tech Support
Targeted remote assistance & on‑site solutions on demand
FAQ
What is the warranty period?
Standard warranty coverage is offered for all products, extended warranty options are also available upon request.
Do you provide installation services?
Yes, we can provide remote commissioning and operation‑training support for your team.
How long does shipping take?
Delivery lead time depends on order quantity and product types. Expedited shipping service is available with additional charges.
Do you support product customization?
Yes, custom solutions are available. Please get in touch with our sales team for detailed requirements.
Can I get a customized model?
Absolutely. We support OEM / ODM customization services. Feel free to consult our sales team for more details.
