Technical Parameters
| Parameter | UNIT | TD-04 | TD-06 | TD-08 |
|---|---|---|---|---|
| Weight | KG | 450 | 890 | 1100 |
| External Dimensions | mm | 1140×850×500 | 1400×1000×600 | 1600×1150×700 |
| Excitation Force | T | 5 | 8 | 12 |
| Excitation Frequency | RPM | ≥2000 | ≥2200 | ≥2200 |
| Working Pressure | MPa | 10 | 13 | 15 |
| Maximum Flow Rate | L/MIN | 60 | 120 | 200 |
| Roller Diameter | mm | 500 | 600 | 700 |
| Roll Width | mm | 800 | 1000 | 1200 |
| Applicable Models | T | 46182 | 46313 | 20-30 |
Product Introduction
Application Scopes

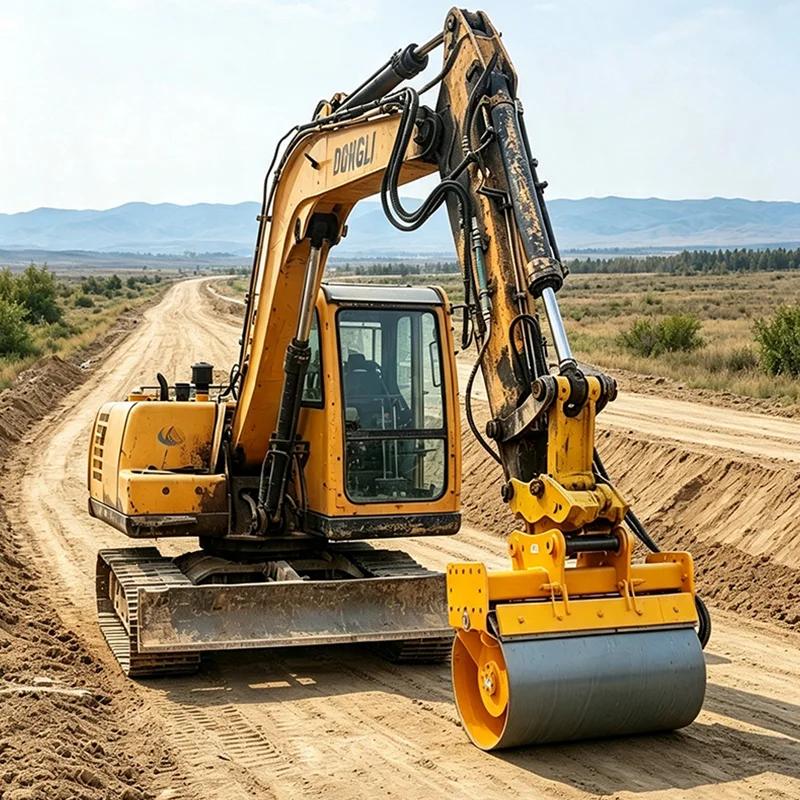

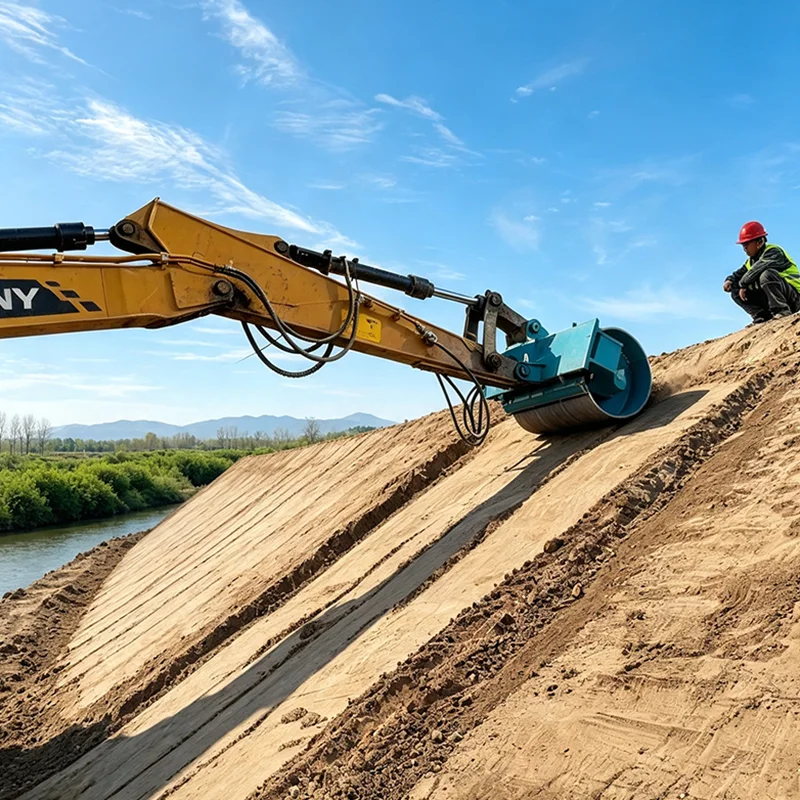

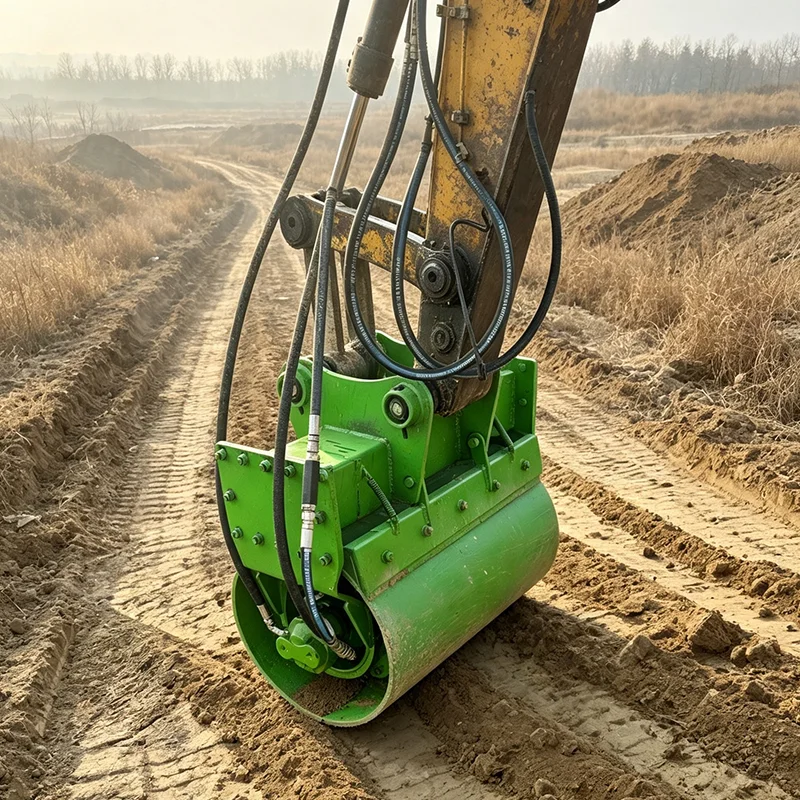

Road construction, trench compaction, pipeline backfilling, foundation work, slope compaction, dam construction, landfill compaction.
Core Strengths
✅ Hydraulic roller compactor for excavators
✅ Three models: TD-04, TD-06, TD-08
✅ 5-12 ton excitation force
✅ ≥2000-2200 RPM excitation frequency
✅ 500-700mm roller diameter
✅ 800-1200mm roll width
✅ 10-15MPa working pressure
✅ Durable construction for heavy-duty use
✅ Ideal for trench and slope compaction
Our Services
Pre‑sales Consultation
Customized model matching & tailored technical proposals
Installation Guidance
Custom‑fit installation tips & optional on‑site commissioning
Warranty Service
Warranty‑covered repair & customized spare‑parts supply
24/7 Tech Support
Targeted remote assistance & on‑site solutions on demand
FAQ
What is the warranty period?
Standard warranty coverage is offered for all products, extended warranty options are also available upon request.
Do you provide installation services?
Yes, we can provide remote commissioning and operation‑training support for your team.
How long does shipping take?
Delivery lead time depends on order quantity and product types. Expedited shipping service is available with additional charges.
Do you support product customization?
Yes, custom solutions are available. Please get in touch with our sales team for detailed requirements.
Can I get a customized model?
Absolutely. We support OEM / ODM customization services. Feel free to consult our sales team for more details.
