Technical Parameters
| Parameter | UNIT | TD04 | TD06 | TD08 |
|---|---|---|---|---|
| Clamp Width | mm | 1500 | 1800 | 1800 |
| Maximum Gripping Diameter | mm | 450 | 450 | 600 |
| Minimum Gripping Diameter | mm | 140 | 180 | 180 |
| Rotating Flow Rate | L/MIN | 30-40 | 30-40 | 30-40 |
| Rotating Pressure | MPa | 12 | 12 | 12 |
| Opening Pressure | MPa | 16-22 | 16-22 | 16-22 |
| Opening Flow Rate | L/MIN | 50-80 | 80-100 | 80-120 |
| External Dimensions | mm | 1700*700*1400 | 2000*750*1520 | 2000*920*1520 |
| Weight | KG | 540 | 760 | 810 |
| Suitable Excavator | T | 6--9 | 10---18 | 20-35 |
Product Introduction
Application Scopes

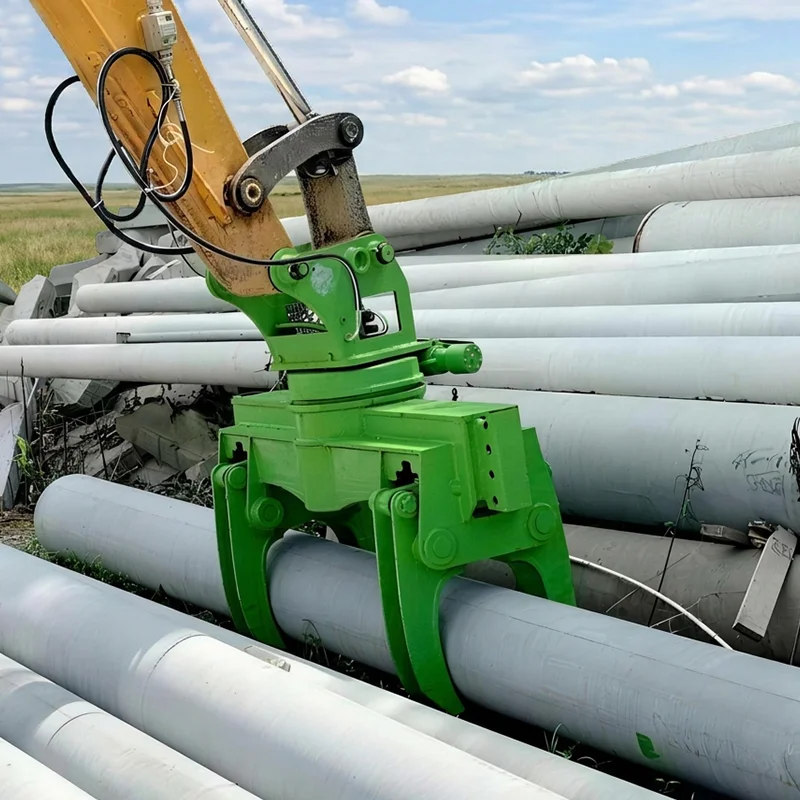

Pipeline installation, pipe handling, construction sites, oil and gas projects, water supply systems, infrastructure, material lifting.
Core Strengths

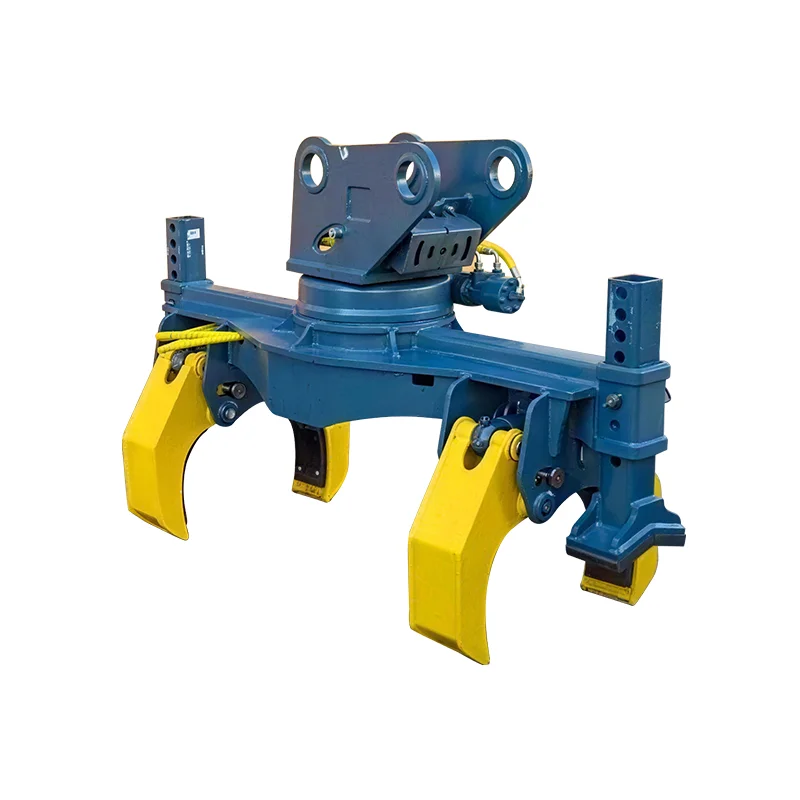

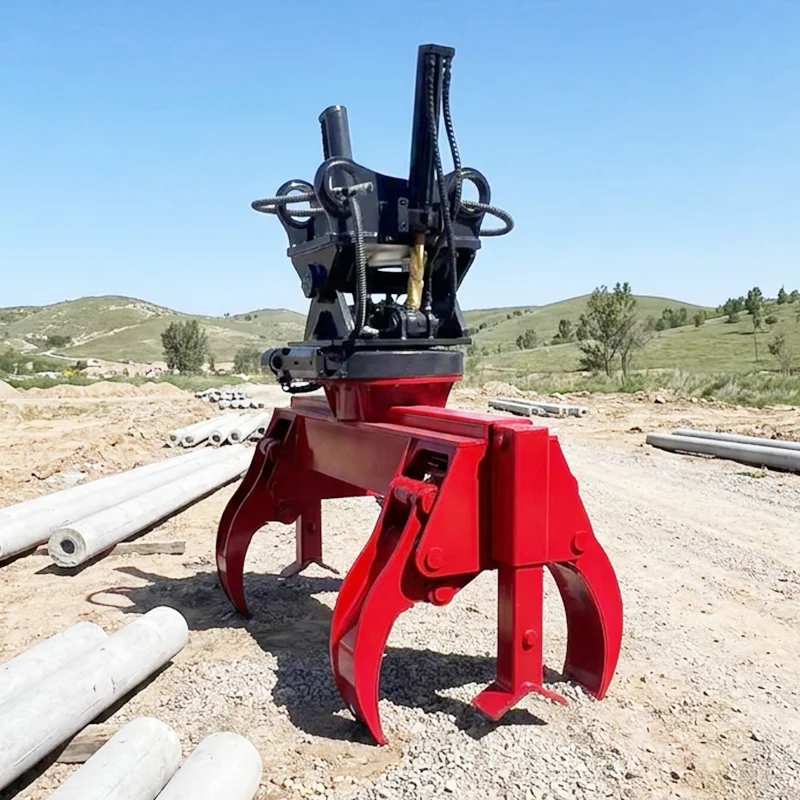

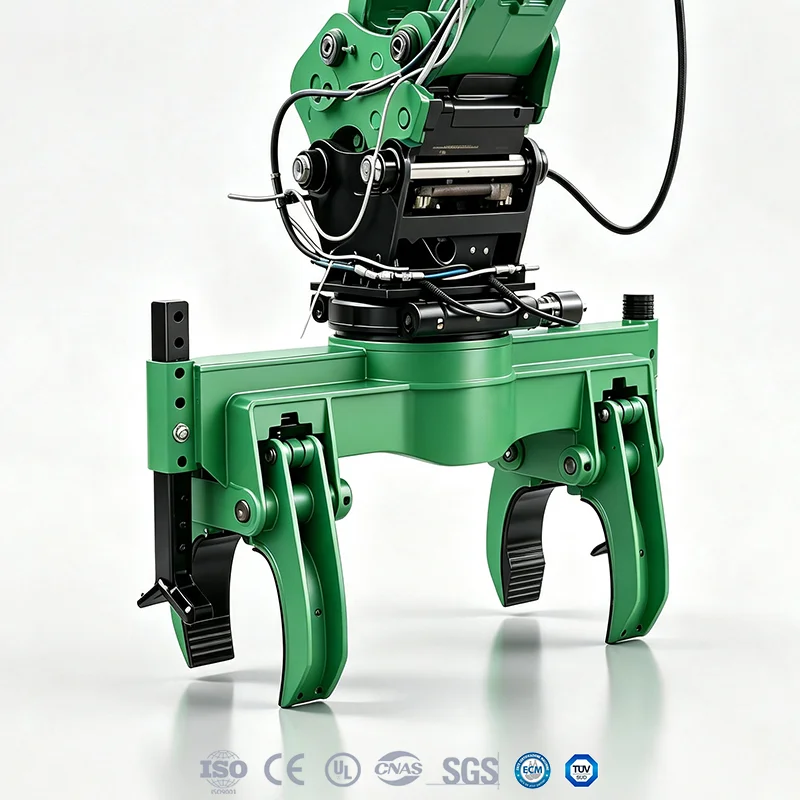

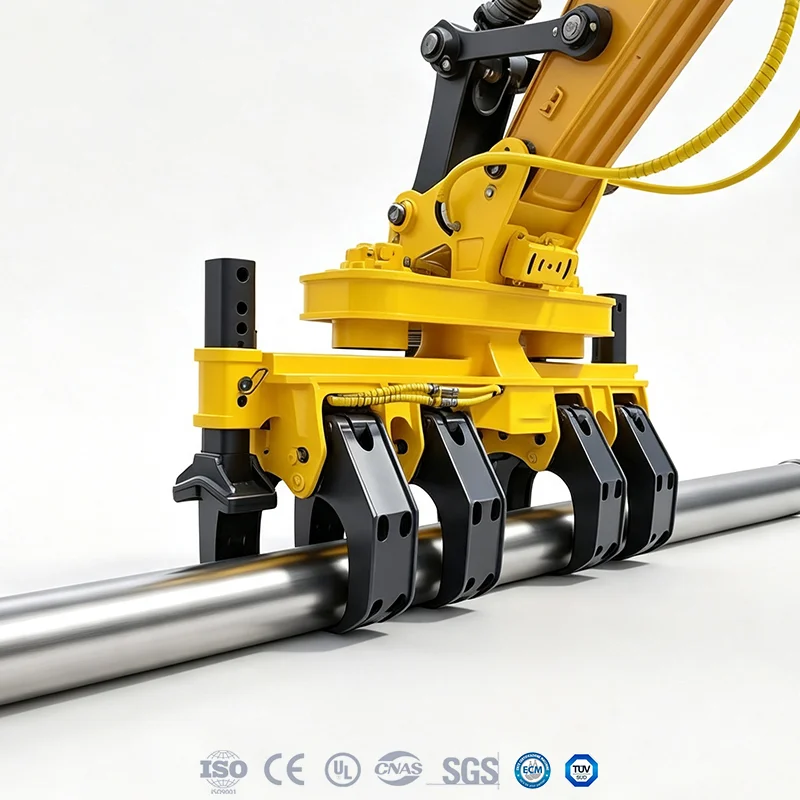

✅ Hydraulic rotating pipe clamp for excavators
✅ Three models: TD04, TD06, TD08
✅ Compatible with 6-35 ton excavators
✅ 140-600mm gripping diameter range
✅ 360° hydraulic rotation
✅ 16-22MPa opening pressure
✅ 50-120 L/min hydraulic flow
✅ 1500-1800mm clamp width
✅ Ideal for pipeline installation and handling
Our Services
Pre‑sales Consultation
Customized model matching & tailored technical proposals
Installation Guidance
Custom‑fit installation tips & optional on‑site commissioning
Warranty Service
Warranty‑covered repair & customized spare‑parts supply
24/7 Tech Support
Targeted remote assistance & on‑site solutions on demand
FAQ
What is the warranty period?
Standard warranty coverage is offered for all products, extended warranty options are also available upon request.
Do you provide installation services?
Yes, we can provide remote commissioning and operation‑training support for your team.
How long does shipping take?
Delivery lead time depends on order quantity and product types. Expedited shipping service is available with additional charges.
Do you support product customization?
Yes, custom solutions are available. Please get in touch with our sales team for detailed requirements.
Can I get a customized model?
Absolutely. We support OEM / ODM customization services. Feel free to consult our sales team for more details.
