Technical Parameters
| Parameter | 1.5-2 Ton Class | 3-3.5 Ton Class (Standard) | 5 Ton Class | 8-10 Ton Class |
|---|---|---|---|---|
| Suitable Forklift Capacity | 1.5-2 T | 3-3.5 T | 5 T | 8-10 T |
| Rated Grabbing Load | 1000 kg | 2000 kg | 3000 kg | 5000 kg |
| Bucket Width | 1100-1200 mm | 1400-1500 mm | 1600-1800 mm | 2000-2200 mm |
| Max Grapple Opening Height | 800-900 mm | 1000-1200 mm | 1300-1500 mm | 1600-1800 mm |
| System Working Pressure | 16-18 MPa | 18-20 MPa | 20-22 MPa | 22-25 MPa |
| Matched Hydraulic Flow | 30-50 L/min | 40-60 L/min | 60-80 L/min | 80-120 L/min |
| Grapple Tilt Angle | Forward 45° / Backward 15° | Forward 45° / Backward 15° | Forward 45° / Backward 15° | Forward 45° / Backward 15° |
| Total Attachment Weight | 350-450 kg | 550-700 kg | 800-1000 kg | 1300-1600 kg |
| Mounting Class | ISO Class 2 | ISO Class 3 | ISO Class 4 | ISO Class 5 |
Product Introduction
Application Scopes

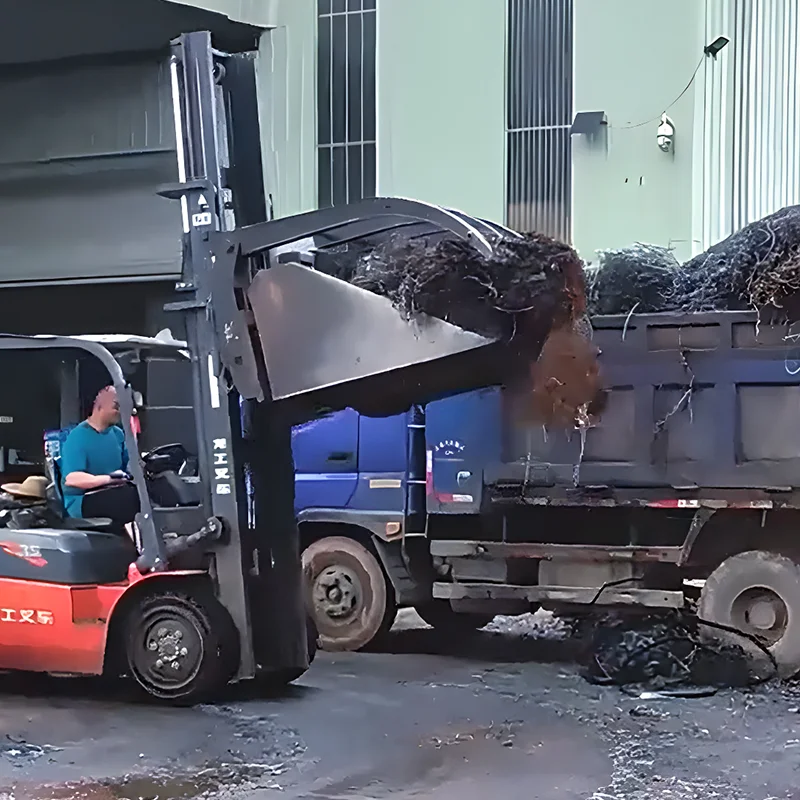

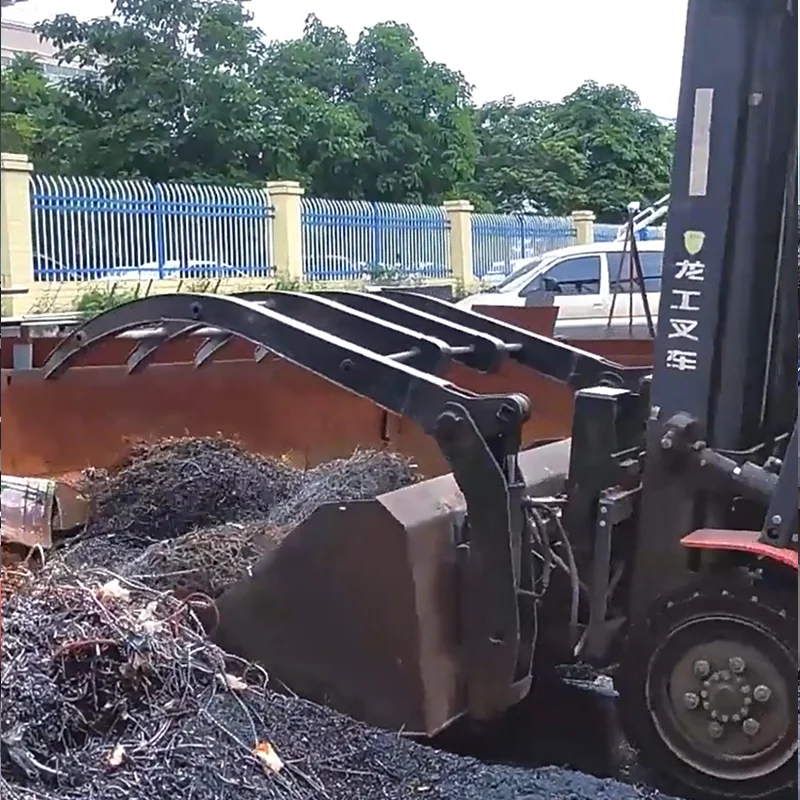

Waste handling, recycling yards, scrap processing, industrial cleanup, construction debris, warehouse operations, material handling.
Core Strengths

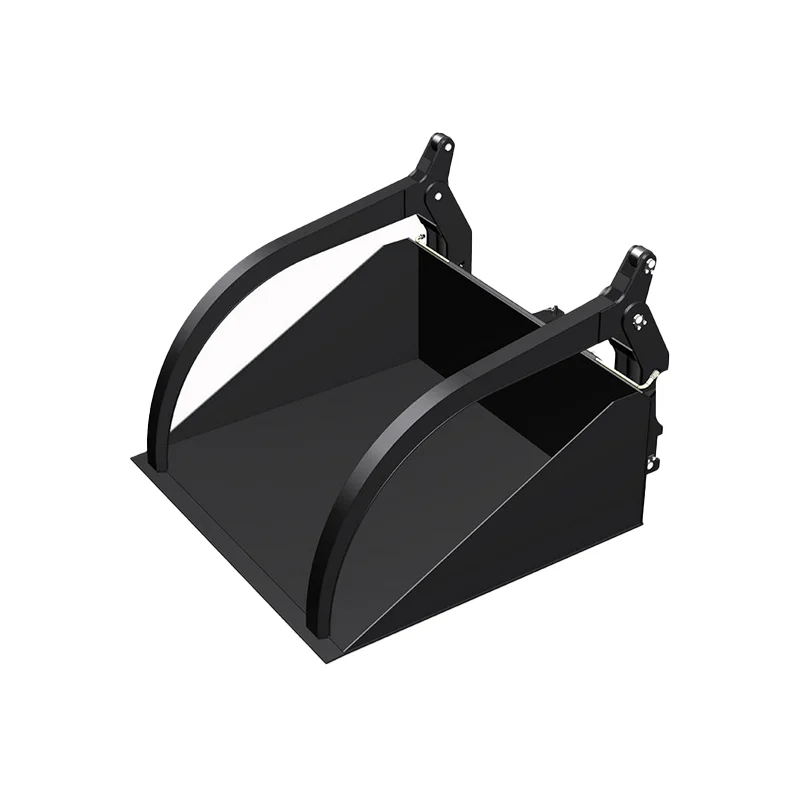

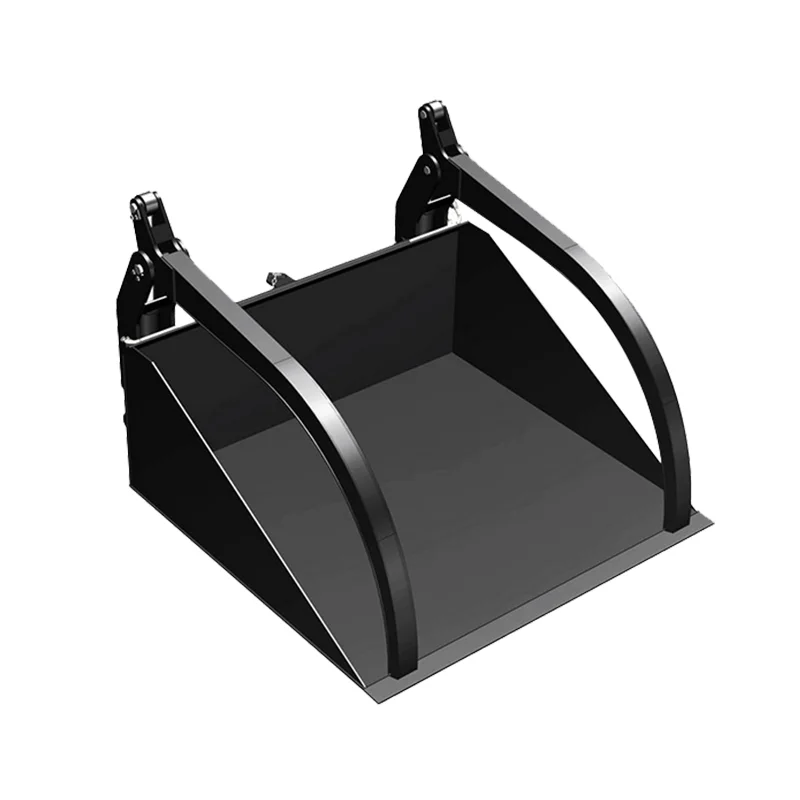

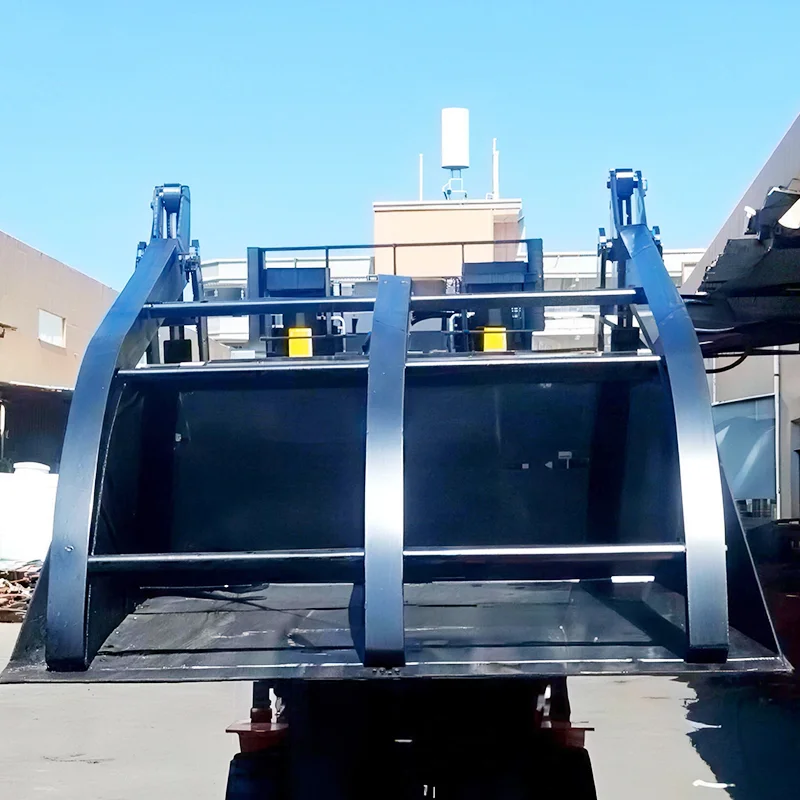

✅ Hydraulic waste grapple for forklifts
✅ Four models: 1.5-2T to 8-10T class
✅ 1000-5000kg rated grabbing load
✅ 1100-2200mm bucket width
✅ 45° forward / 15° backward tilt
✅ 16-25MPa working pressure
✅ ISO Class 2-5 mounting
✅ Heavy-duty steel construction
✅ Ideal for waste and scrap handling
Our Services
Pre‑sales Consultation
Customized model matching & tailored technical proposals
Installation Guidance
Custom‑fit installation tips & optional on‑site commissioning
Warranty Service
Warranty‑covered repair & customized spare‑parts supply
24/7 Tech Support
Targeted remote assistance & on‑site solutions on demand
FAQ
What is the warranty period?
Standard warranty coverage is offered for all products, extended warranty options are also available upon request.
Do you provide installation services?
Yes, we can provide remote commissioning and operation‑training support for your team.
How long does shipping take?
Delivery lead time depends on order quantity and product types. Expedited shipping service is available with additional charges.
Do you support product customization?
Yes, custom solutions are available. Please get in touch with our sales team for detailed requirements.
Can I get a customized model?
Absolutely. We support OEM / ODM customization services. Feel free to consult our sales team for more details.
