Technical Parameters
| Parameter | FTJ-10 | FTJ-20 | FTJ-30 | FTJ-50 |
|---|---|---|---|---|
| Suitable Forklift Capacity | 2-3 T | 3-5 T | 5-8 T | 8-10 T |
| Max. Rated Load (Fully Retracted) | 1000 kg | 2000 kg | 3000 kg | 5000 kg |
| Rated Load @ Full Extension | 500 kg | 800 kg | 1200 kg | 2000 kg |
| Retracted Overall Length | 2200 mm | 2500 mm | 2800 mm | 3200 mm |
| Maximum Extended Length | 3600 mm | 4200 mm | 5000 mm | 6000 mm |
| Number of Telescopic Sections | 2 | 2--3 | 3 | 3 |
| System Working Pressure | 16-18 MPa | 18-20 MPa | 20-22 MPa | 22-25 MPa |
| Total Attachment Weight | 180 kg | 280 kg | 450 kg | 750 kg |
| Mounting Type | Fork Sleeve Mounting | Fork Sleeve Mounting | Fork Sleeve Mounting | Fork Sleeve Mounting |
| Hook Specification | 1T Safety Hook | 2T Safety Hook | 3T Safety Hook | 5T Safety Hook |
Product Introduction
Application Scopes
Material lifting, warehouse operations, construction sites, industrial maintenance, loading unloading, heavy equipment handling, logistics.
Core Strengths

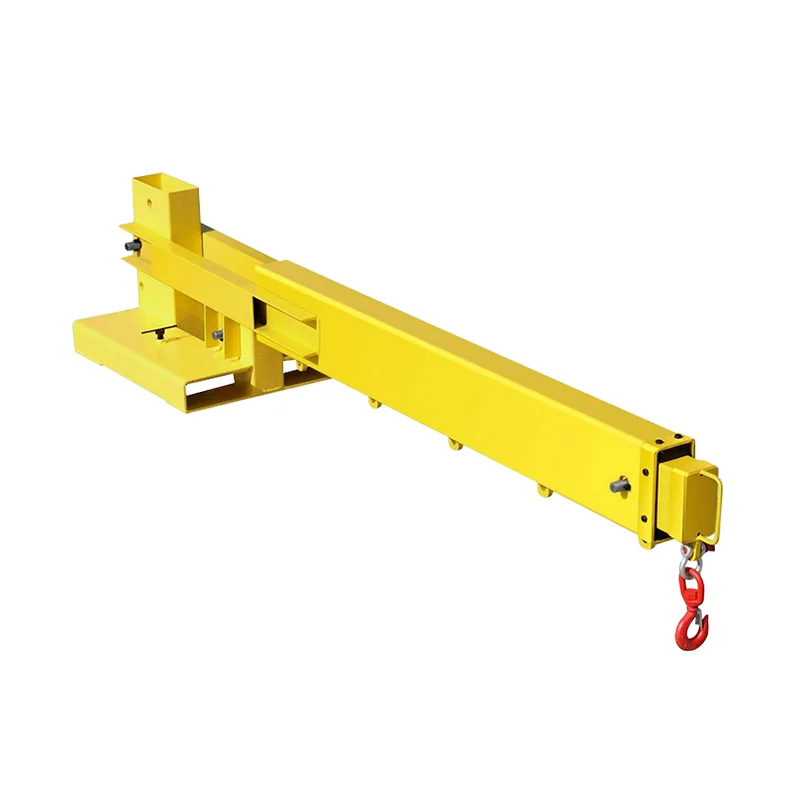

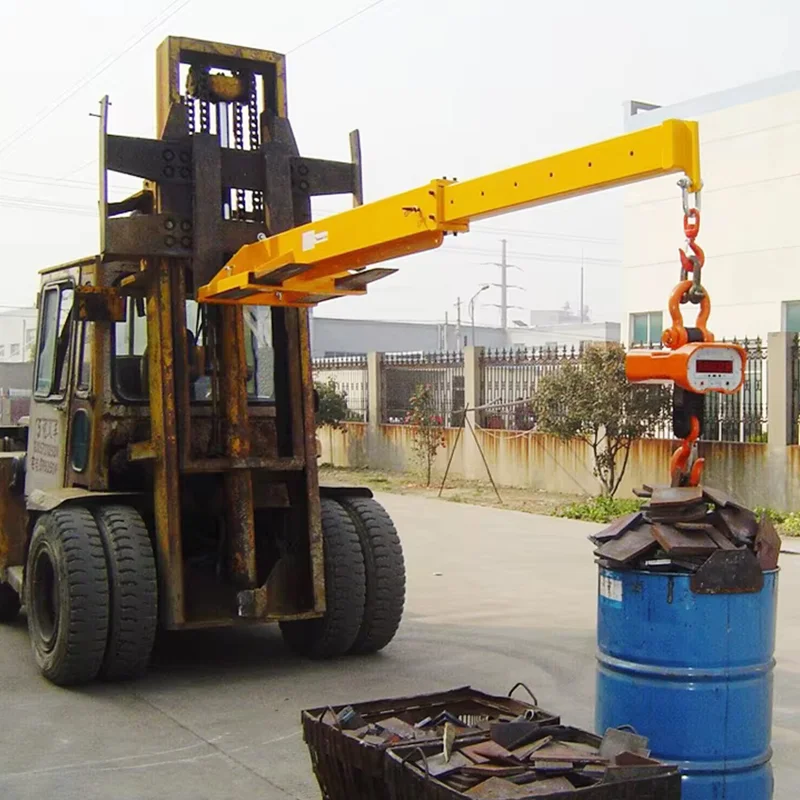

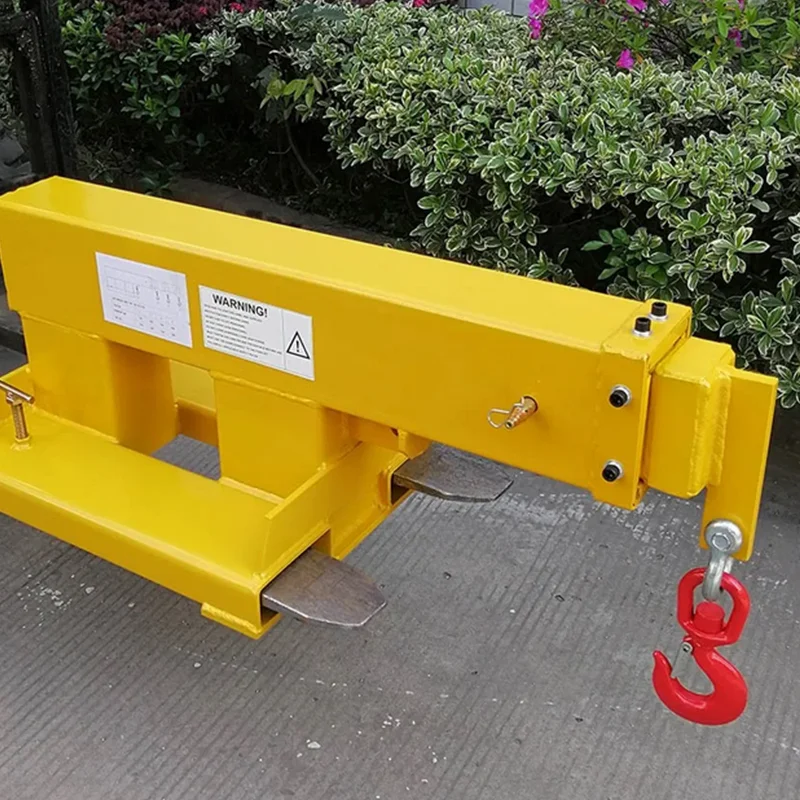

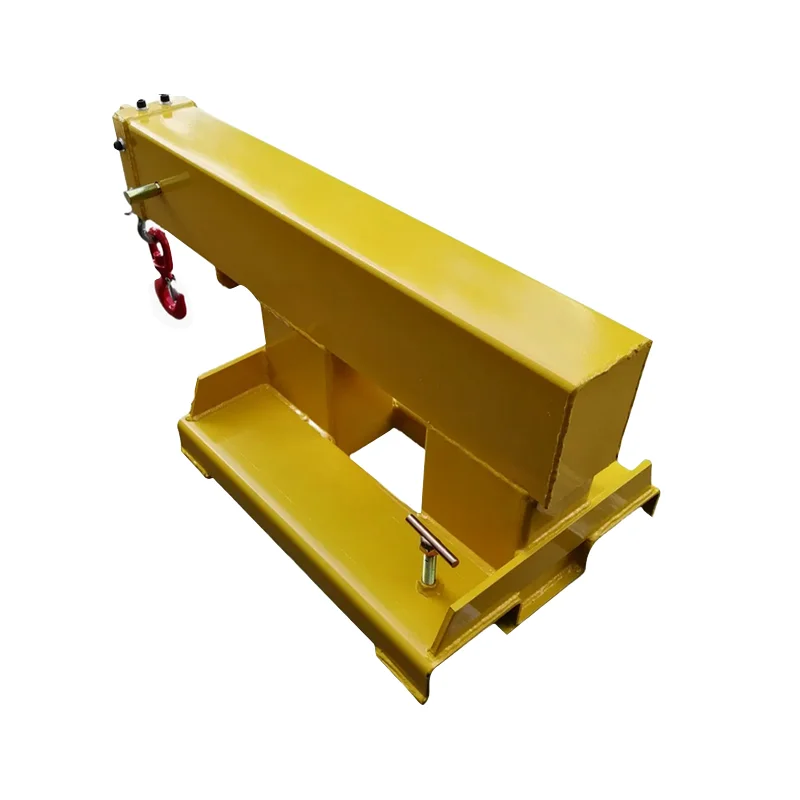

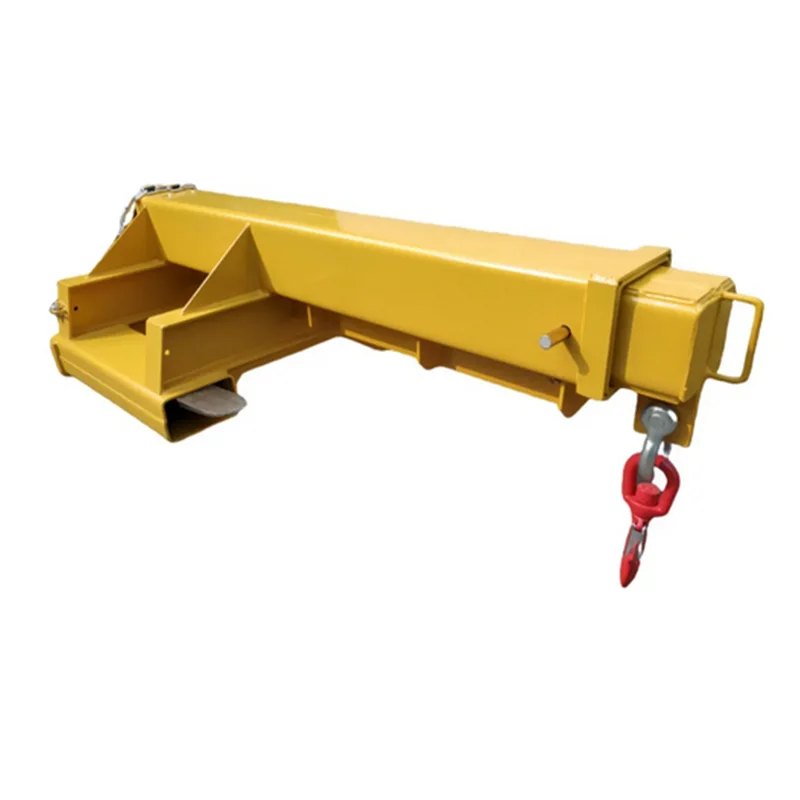

✅ Hydraulic telescopic jib crane for forklifts
✅ Four models: FTJ-10 to FTJ-50
✅ Compatible with 2-10 ton forklifts
✅ 1000-5000kg rated load (retracted)
✅ 3600-6000mm maximum extended length
✅ 2-3 telescopic sections
✅ 16-25MPa working pressure
✅ Fork sleeve mounting, easy installation
✅ Ideal for material lifting and heavy handling
Our Services
Pre‑sales Consultation
Customized model matching & tailored technical proposals
Installation Guidance
Custom‑fit installation tips & optional on‑site commissioning
Warranty Service
Warranty‑covered repair & customized spare‑parts supply
24/7 Tech Support
Targeted remote assistance & on‑site solutions on demand
FAQ
What is the warranty period?
Standard warranty coverage is offered for all products, extended warranty options are also available upon request.
Do you provide installation services?
Yes, we can provide remote commissioning and operation‑training support for your team.
How long does shipping take?
Delivery lead time depends on order quantity and product types. Expedited shipping service is available with additional charges.
Do you support product customization?
Yes, custom solutions are available. Please get in touch with our sales team for detailed requirements.
Can I get a customized model?
Absolutely. We support OEM / ODM customization services. Feel free to consult our sales team for more details.
