Technical Parameters
| Parameter | Unit | ZJ80 | ZJ1100 | ZJ1150 |
|---|---|---|---|---|
| Caliber | mm | 75 | 100 | 150 |
| Flow | m³/h | 100 | 120 | 200 |
| Lift | m | 20 | 25 | 30 |
| Suitable Excavator | ton | 6-10 | 10-15 | 15-25 |
| Working Pressure | MPa | 16-20 | 18-22 | 20-25 |
| Oil Flow | L/min | 60-100 | 80-130 | 100-160 |
| Motor Power | kW | 15 | 22 | 37 |
| Max Particle Size | mm | 20 | 30 | 40 |
| Weight | kg | 180 | 260 | 380 |
| Overall Length | mm | 850 | 950 | 1100 |
| Overall Width | mm | 450 | 520 | 600 |
| Overall Height | mm | 500 | 580 | 680 |
Product Introduction
Application Scopes

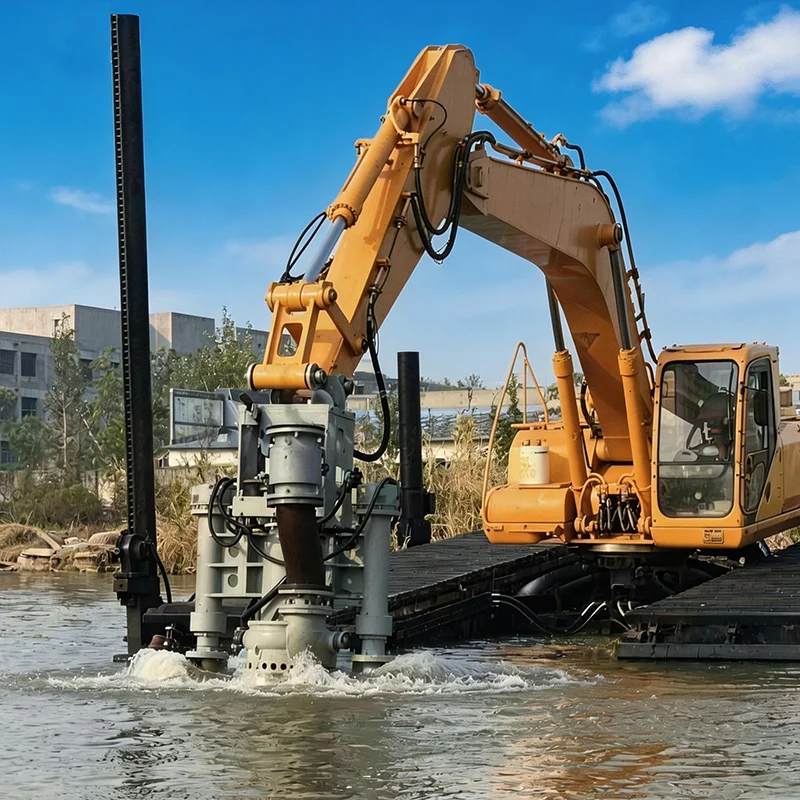

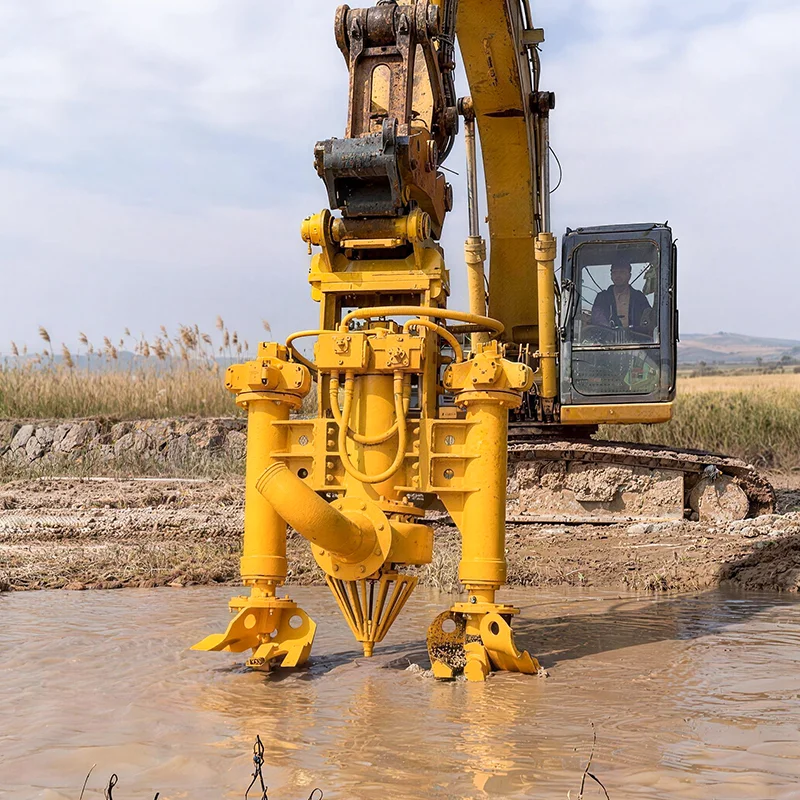

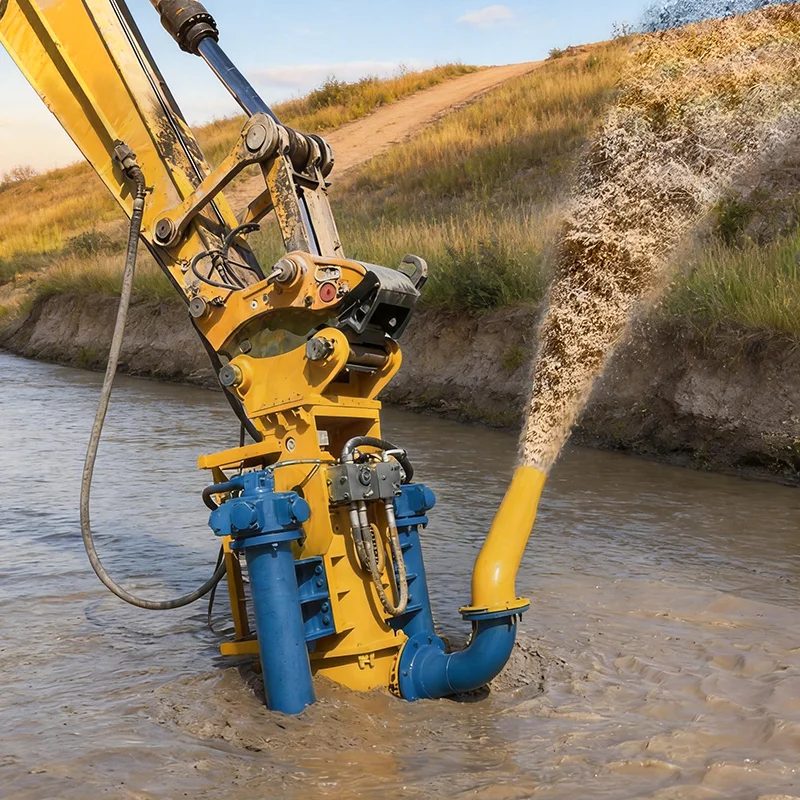

Slurry pumping, dredging, mine tailings, construction dewatering, river cleaning, industrial wastewater, sediment removal.
Core Strengths

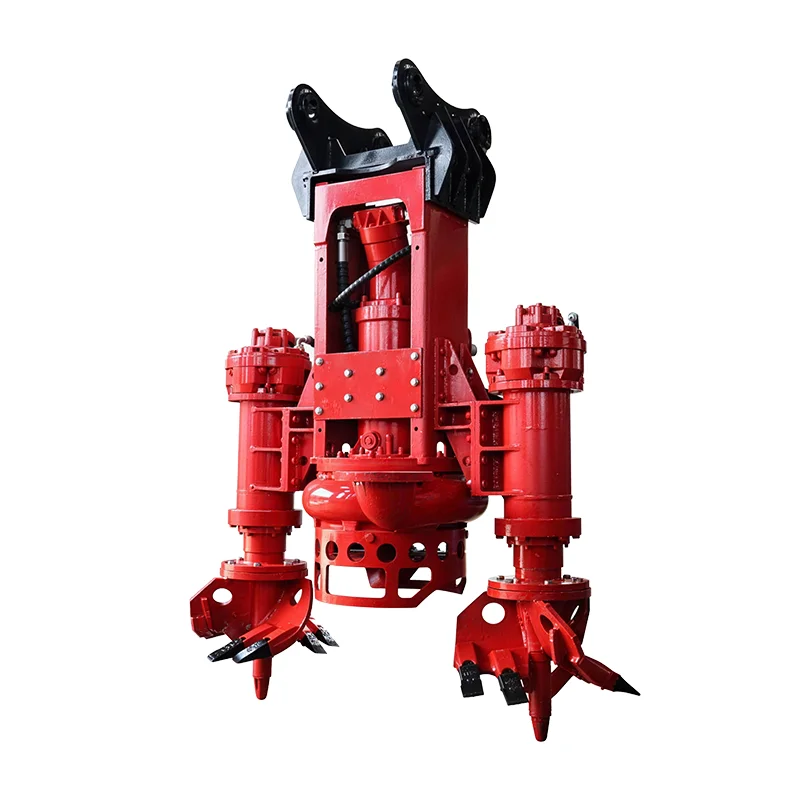

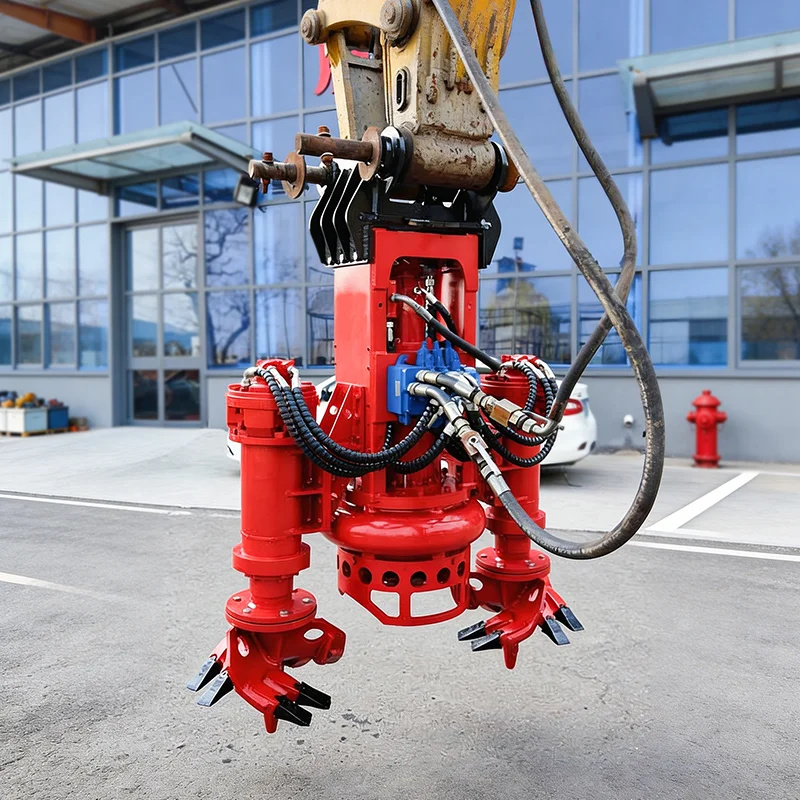

✅ Hydraulic submersible slurry pump for excavators
✅ Three models: ZJ80, ZJ1100, ZJ1150
✅ 75-150mm caliber
✅ 100-200 m³/h flow rate
✅ 20-30m lift height
✅ Hydraulic drive for reliable operation
✅ Submersible design for deep water
✅ Wear-resistant construction
✅ Ideal for slurry and sediment pumping
Our Services
Pre‑sales Consultation
Customized model matching & tailored technical proposals
Installation Guidance
Custom‑fit installation tips & optional on‑site commissioning
Warranty Service
Warranty‑covered repair & customized spare‑parts supply
24/7 Tech Support
Targeted remote assistance & on‑site solutions on demand
FAQ
What is the warranty period?
Standard warranty coverage is offered for all products, extended warranty options are also available upon request.
Do you provide installation services?
Yes, we can provide remote commissioning and operation‑training support for your team.
How long does shipping take?
Delivery lead time depends on order quantity and product types. Expedited shipping service is available with additional charges.
Do you support product customization?
Yes, custom solutions are available. Please get in touch with our sales team for detailed requirements.
Can I get a customized model?
Absolutely. We support OEM / ODM customization services. Feel free to consult our sales team for more details.
