Technical Parameters
| Parameter | CCS15D-042A | CCS20D-005A | CCS20D-006A | CCS20D-007A | CCS20D-066A | CCS20D-024A | CCS20D-008A | CCS20D-064A | CCS20D-012A |
|---|---|---|---|---|---|---|---|---|---|
| Capacity @ Load Center | 1130@710 | 1600@610 | 1400@710 | 1450@685 | 1400@710 | 1600@710 | 1400@710 | 1400@710 | 1400@710 |
| Mounting Class | II | II | II | II | II | II | II | III | III |
| Opening Range (mm) | 570–2350 | 560–1930 | 560–1930 | 560–1930 | 560–1930 | 630–2280 | 570–2350 | 500–2400 | 500–2400 |
| Arm Height A (mm) | 1370 | 1220 | 1220 | 1525 | 1370 | 1200 | 1200 | 1370 | 1200 |
| Arm Length B (mm) | 1400 | 1220 | 1420 | 1370 | 1420 | 1420 | 1420 | 1420 | 1420 |
| Frame Width D (mm) | 1400 | 1040 | 1040 | 1040 | 1040 | 1200 | 1400 | 1600 | 1600 |
| Vertical Center of Gravity - CGV (mm) | 315 | 320 | 315 | 380 | 315 | 368 | 350 | 350 | 350 |
| Weight (kg) | 850 | 705 | 770 | 824 | 800 | 848 | 875 | 975 | 955 |
| Effective Thickness - ET (mm) | 127 | 127 | 127 | 127 | 127 | 127 | 127 | 152 | 152 |
| Horizontal Center of Gravity - CGH (mm) | 483 | 450 | 483 | 485 | 483 | 534 | 516 | 520 | 520 |

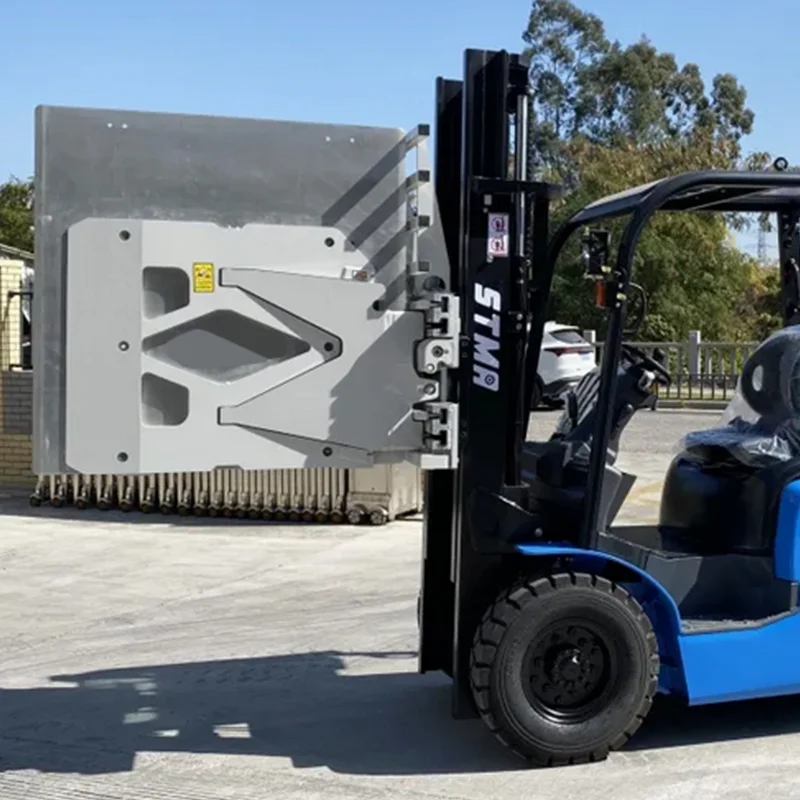

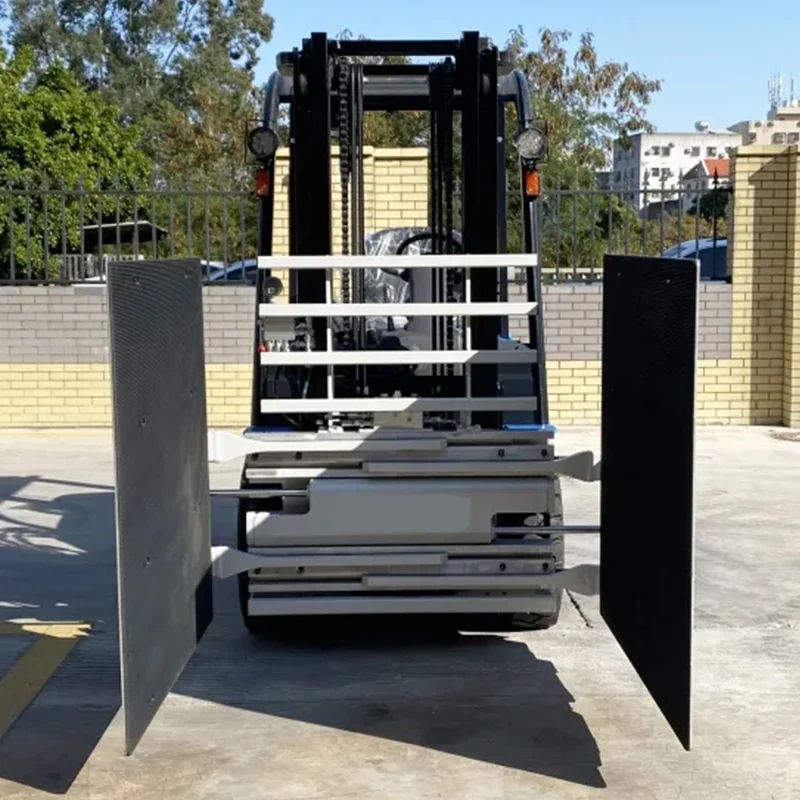

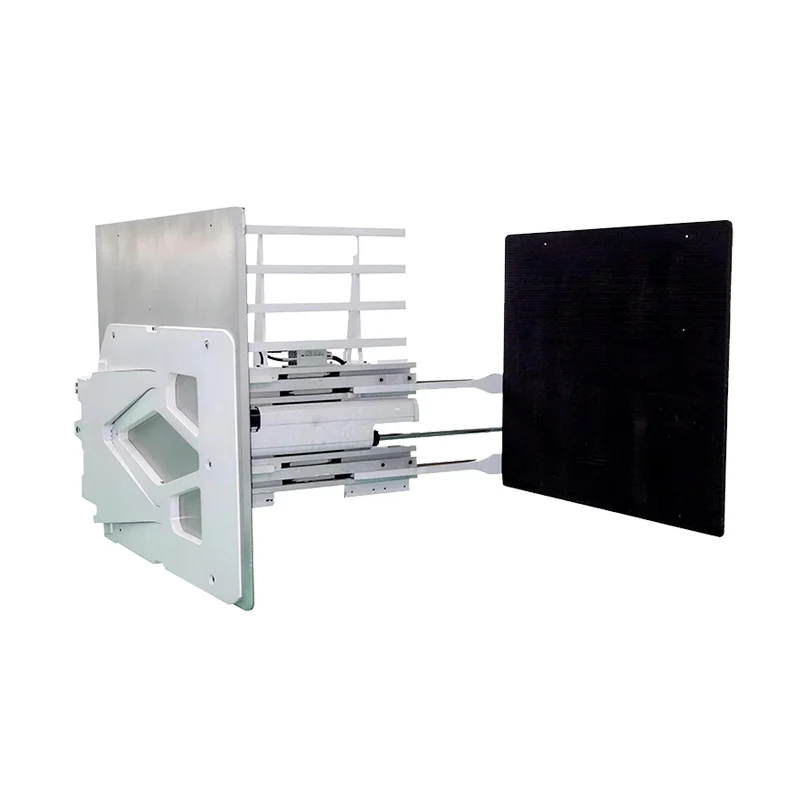

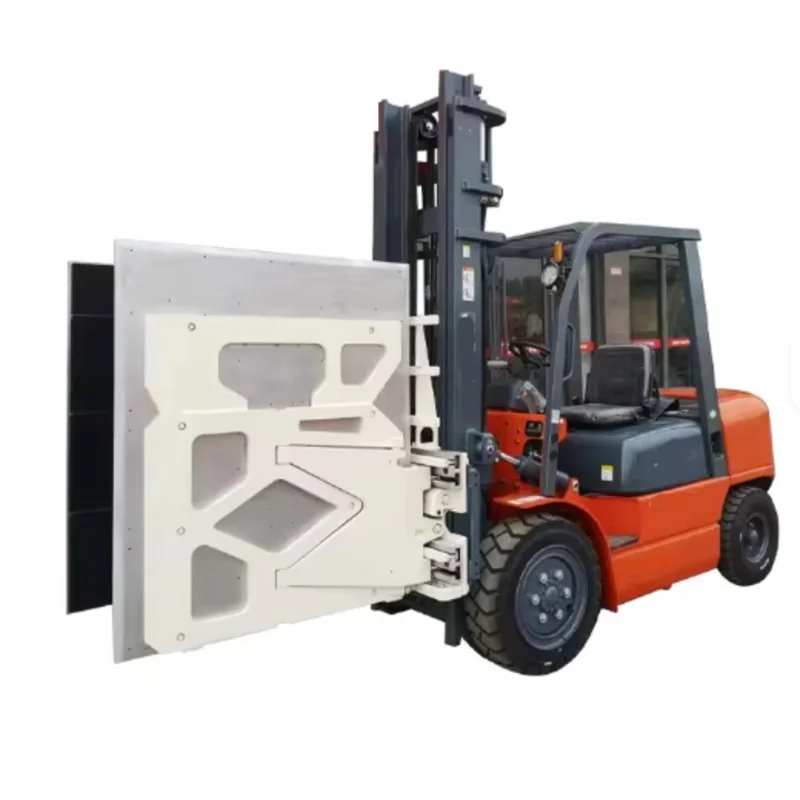

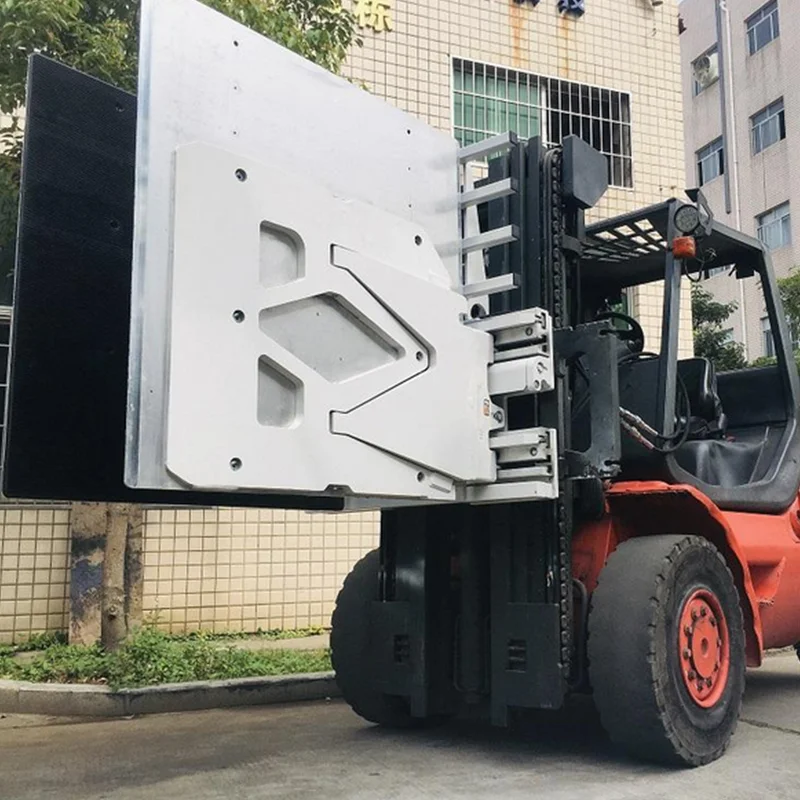

Product Introduction
Application Scopes
Carton handling, warehouse operations, logistics, distribution centers, packaging industry, loading unloading, material handling.
Core Strengths
✅ Hydraulic carton clamp for forklifts
✅ 1130-1600kg capacity
✅ 500-2400mm opening range
✅ Class II to III mounting compatibility
✅ 1200-1525mm arm height options
✅ 1040-1600mm frame width options
✅ 705-975kg attachment weight
✅ Non-slip rubber padding
✅ Ideal for carton and box handling
Our Services
Pre‑sales Consultation
Customized model matching & tailored technical proposals
Installation Guidance
Custom‑fit installation tips & optional on‑site commissioning
Warranty Service
Warranty‑covered repair & customized spare‑parts supply
24/7 Tech Support
Targeted remote assistance & on‑site solutions on demand
