Technical Parameters
| Parameter | LG-03 | LG-05 | LG-08 | LG-12 |
|---|---|---|---|---|
| Suitable Loader Capacity | 1–2 Ton | 3–5 Ton | 5–8 Ton | 10–15 Ton |
| Rated Grabbing Load | 800 kg | 2000 kg | 3500 kg | 6000 kg |
| Max Jaw Opening | 1300 mm | 1500 mm | 1850 mm | 2300 mm |
| Min Clamping Diameter | 120 mm | 150 mm | 200 mm | 280 mm |
| Overall Grapple Width | 1100 mm | 1400 mm | 1700 mm | 2100 mm |
| Number of Tines | 4+4 (upper + lower) | 5+5 (upper + lower) | 6+6 (upper + lower) | 7+7 (upper + lower) |
| System Working Pressure | 16–18 MPa | 18–20 MPa | 20–22 MPa | 22–25 MPa |
| Matched Hydraulic Flow | 30–55 L/min | 50–100 L/min | 90–130 L/min | 120–180 L/min |
| Attachment Weight | 320 kg | 450 kg | 780 kg | 1450 kg |
| Tine Material | High-strength wear-resistant steel | High-strength wear-resistant steel | High-strength wear-resistant steel | High-strength wear-resistant steel |
Product Introduction
Application Scopes

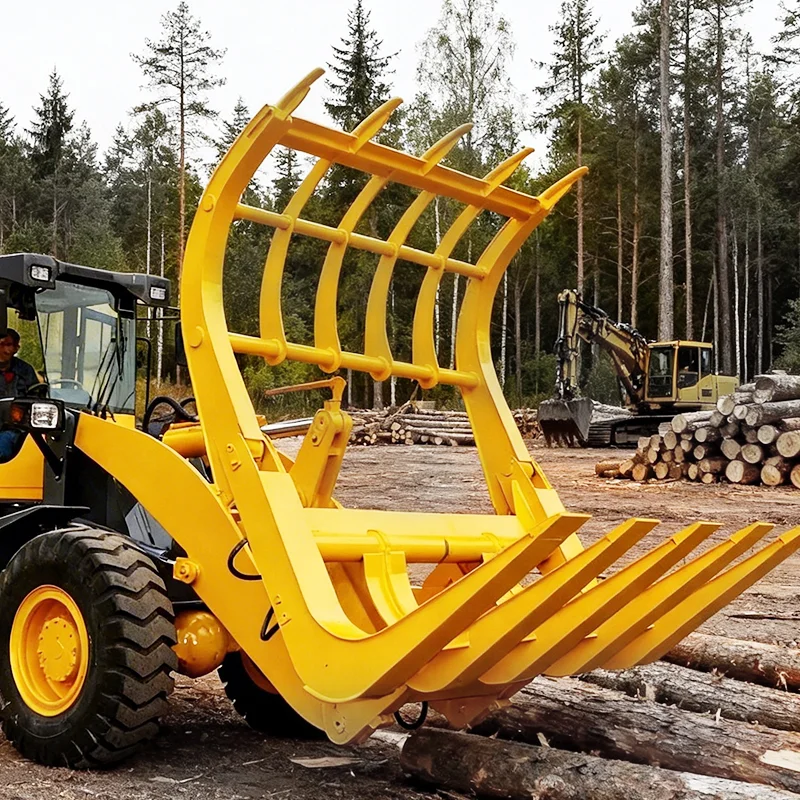

Timber handling, log loading, sawmill operations, forestry, wood processing, warehouse logistics, material handling.
Core Strengths
✅ Hydraulic log grapple for forklifts
✅ Four models: LG-03 to LG-12
✅ Compatible with 1-15 ton forklifts
✅ 800-6000kg rated grabbing load
✅ 1300-2300mm max jaw opening
✅ 120-280mm min clamping diameter
✅ 16-25MPa working pressure
✅ High-strength wear-resistant steel tines
✅ Ideal for timber and log handling
Our Services
Pre‑sales Consultation
Customized model matching & tailored technical proposals
Installation Guidance
Custom‑fit installation tips & optional on‑site commissioning
Warranty Service
Warranty‑covered repair & customized spare‑parts supply
24/7 Tech Support
Targeted remote assistance & on‑site solutions on demand
FAQ
What is the warranty period?
Standard warranty coverage is offered for all products, extended warranty options are also available upon request.
Do you provide installation services?
Yes, we can provide remote commissioning and operation‑training support for your team.
How long does shipping take?
Delivery lead time depends on order quantity and product types. Expedited shipping service is available with additional charges.
Do you support product customization?
Yes, custom solutions are available. Please get in touch with our sales team for detailed requirements.
Can I get a customized model?
Absolutely. We support OEM / ODM customization services. Feel free to consult our sales team for more details.
