Technical Parameters
| Parameter | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 |
|---|---|---|---|---|---|---|---|
| Volume (m³) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 |
| Weight (KG) | 880 | 1600 | 1800 | 2300 | 2550 | 2935 | 2970 |
| Working Pressure (MPa) | 20-24 | 24-26 | 24-26 | 25-28 | 25-28 | 25-30 | 25-30 |
| Working Flow (L/min) | 40-60 | 120-150 | 150-180 | 180-200 | 180-200 | 180-200 | 180-200 |
| A (mm) | 1488 | 1850 | 2030 | 1885 | 1885 | 2155 | 2425 |
| B (mm) | 980 | 1076 | 1240 | 1600 | 1970 | 2000 | 1702 |
| C (mm) | 1646 | 2018 | 2176 | 2357 | 2357 | 2617 | 2995 |
| D (mm) | 2301 | 2975 | 3010 | 3330 | 3330 | 3445 | 3658 |
| E (mm) | 1826 | 2385 | 2356 | 2570 | 2570 | 2530 | 2655 |
Product Introduction
Application Scopes
Deep excavation, shaft digging, material loading, port operations, dredging, industrial handling, construction sites.
Core Strengths

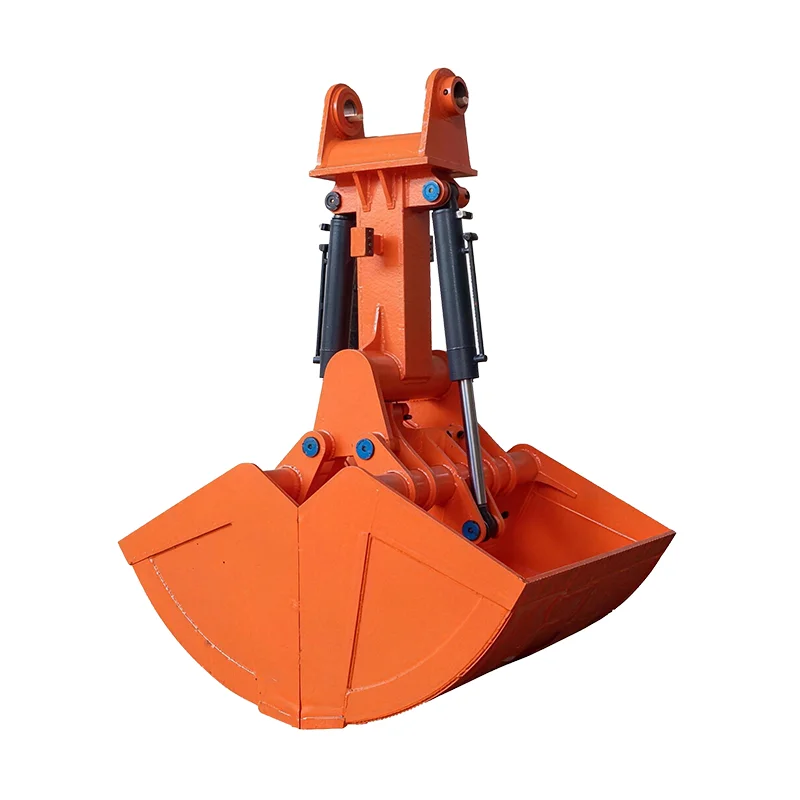

✅ Hydraulic clamshell bucket for excavators
✅ Seven models: 0.5 to 3.5 m³ capacity
✅ 20-30MPa working pressure
✅ 40-200 L/min hydraulic flow
✅ 880-2970kg weight
✅ Double-shell design for deep digging
✅ Heavy-duty steel construction
✅ Hydraulic cylinder for reliable operation
✅ Ideal for deep excavation and material handling
Our Services
Pre‑sales Consultation
Customized model matching & tailored technical proposals
Installation Guidance
Custom‑fit installation tips & optional on‑site commissioning
Warranty Service
Warranty‑covered repair & customized spare‑parts supply
24/7 Tech Support
Targeted remote assistance & on‑site solutions on demand
FAQ
What is the warranty period?
Standard warranty coverage is offered for all products, extended warranty options are also available upon request.
Do you provide installation services?
Yes, we can provide remote commissioning and operation‑training support for your team.
How long does shipping take?
Delivery lead time depends on order quantity and product types. Expedited shipping service is available with additional charges.
Do you support product customization?
Yes, custom solutions are available. Please get in touch with our sales team for detailed requirements.
Can I get a customized model?
Absolutely. We support OEM / ODM customization services. Feel free to consult our sales team for more details.
